ProInfo >> Graphite Products

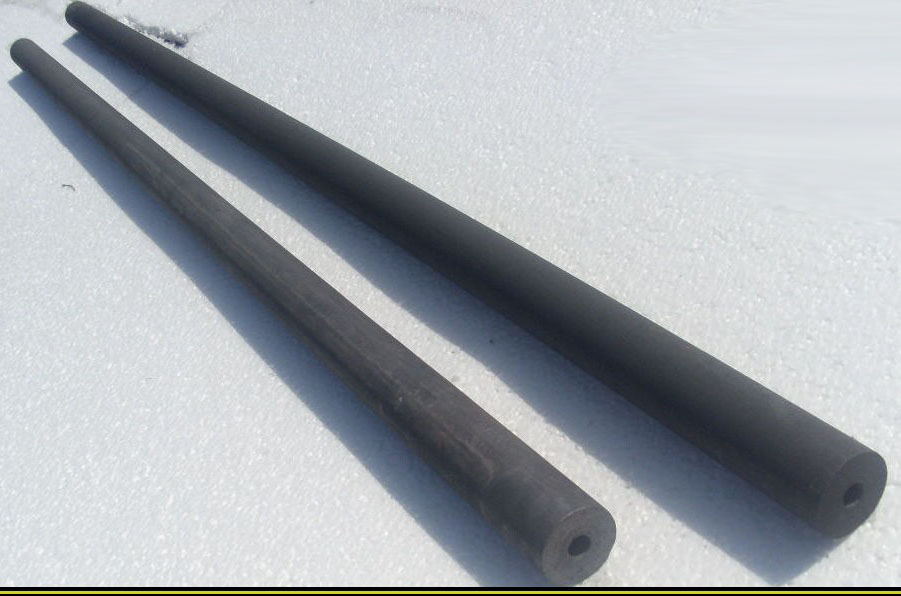

Graphite Tube

Medium-grain Specialty Graphite HTK1

项目 ltem	单位 Unit	保证值 Guarantee Value	典型值 Typical Value	保证值 Guarantee Value	典型值 Typical Value	保证值 Guarantee Value	典型值 Typical Value
最大粒度 Max Grain Size	mm	2	2	4	4	8	8
体积密度 Bulk Density	g/cm³	≥1.58	1.60	≥1.57	1.58	≥1.56	1.58
电阻率 Specific Resistance	μΩ·m	≤11.5	10.5	≤11.5	10.5	≤12.5	11.5
抗折强度 Bending Strength	MPa	≥6.0	6.5	≥6.5	7.0	≥7.0	7.5
抗压强度 Compressive Strength	MPa	≥18.0	18.5	≥17.5	18.0	≥16.0	17.0
弹性模量 modulus of elasticity	GPa	≤9.3	7.5	≤9.3	7.5	≤9.3	7.0
热膨胀系数 C.T.E （100-600）℃	10^-6/℃	≤2.5	2.4	≤2.5	2.4	≤2.5	2.4
灰分 Ash Content	％	≤0.3	0.09	≤0.3	0.09	≤0.3	0.09

Medium-grain Specialty Graphite HTK2

项目 ltem	单位 Unit	保证值 Guarantee Value	典型值 Typical Value	保证值 Guarantee Value	典型值 Typical Value	保证值 Guarantee Value	典型值 Typical Value
最大粒度 Max Grain Size	mm	2	2	4	4	8	8
体积密度 Bulk Density	g/cm³	≥1.70	1.75	≥1.69	1.73	≥1.68	1.72
电阻率 Specific Resistance	μΩ·m	≤8.5	7.5	≤8.5	7.5	≤9.0	8.5
抗折强度 Bending Strength	MPa	≥9.0	10.0	≥9.0	10.0	≥10.0	12.5
抗压强度 Compressive Strength	MPa	≥30.0	31.0	≥29.0	30.0	≥30.0	31.0
弹性模量 modulus of elasticity	GPa	≤12.0	9.5	≤12.0	9.5	≤12.0	9.0
热膨胀系数 C.T.E （100-600）℃	10^-6/℃	≤2.5	2.3	≤2.5	2.3	≤2.5	2.3
灰分 Ash Content	％	≤0.3	0.09	≤0.3	0.09	≤0.3	0.09

Fine-grain Specialty Graphite HTK3

项目 ltem	单位 Unit	保证值 Guarantee Value	典型值 Typical Value
最大粒度 Max Grain Size	mm	0.8	0.8
体积密度 Bulk Density	g/cm³	≥1.70	1.73
电阻率 Specific Resistance	μΩ·m	≤8.5	7.5
抗折强度 Bending Strength	MPa	≥10.0	11.0
抗压强度 Compressive Strength	MPa	≥24.0	27.0
热导率 Thermal Conductivity	W/（m·K）	≥120	150
热膨胀系数 C.T.E （100-600）℃	10^-6/℃	≤2.5	2.2
灰分 Ash Content	％	≤0.3	0.09

Fine-grain Specialty Graphite HTK4

项目 ltem	单位 Unit	保证值 Guarantee Value	典型值 Typical Value
最大粒度 Max Grain Size	mm	0.8	0.8
体积密度 Bulk Density	g/cm³	≥1.73	1.76
电阻率 Specific Resistance	μΩ·m	≤8.0	7.0
抗折强度 Bending Strength	MPa	≥12.0	12.5
抗压强度 Compressive Strength	MPa	≥31.0	34.0
热导率 Thermal Conductivity	W/（m·K）	≥130	160
热膨胀系数 C.T.E （100-600）℃	10^-6/℃	≤2.5	2.1
灰分 Ash Content	％	≤0.3	0.09

We also can supply as belowed specifications:

Name	Type no	Density (g/cm3)	SpecificResistance (pQm)	Flexural Strength(Mpa)	Compressive Strength(Mpa)	Ash MAX(%)	ParticleMAX
ELECTRODE Graphite	RP	≥1.55-1.75	7.5-8.5	≥8.5	≥20	≤0.3	≤8-10mm
Vibration Graphite	BGSK	≥1.72	7-9	≥13.5	≥35	≤0.3	≤0.8mm
Vibration Graphite	BTSK	≥1.62	7-9	9	≥22	≤0.3	≤2mm
DieMold Graphite	BF2-3	≥1.8	10-13	≥40	≥60	≤0.1	≤0.043mm
DieMold Graphite	BF3-4	≥1.85	10-13	≥47	≥75	≤0.05	≤0.043mm
Extruded Graphite	BFJ	≥1.68	7.5-8.5	≥19	≥38	≤0.3	≤0.2mm
Isostatic Graphite	BFD	≥1.82	11-13	≥38	≥85	≤0.1	2um,6um,8um,15m.etc
