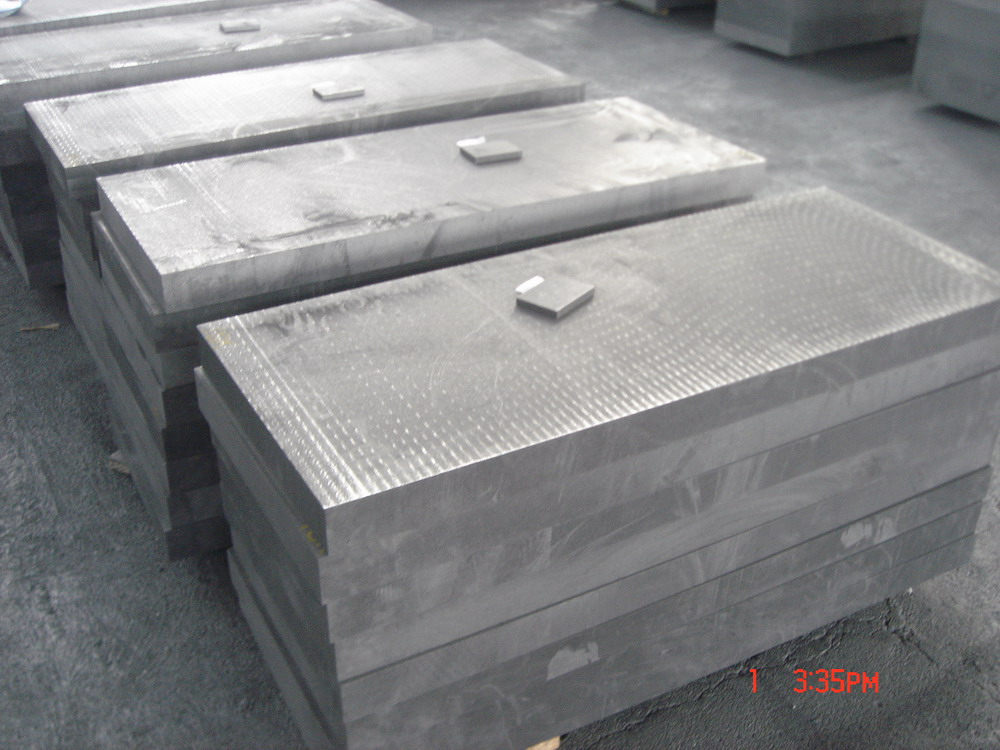

Graphite plates have good resistance to thermal shock, oxidation and corrosion, and have suitable resistivity and homogenous structure. They have been used extensively in industries like solar, foundry, chemicals, electronics, ferrous metals, high-temp, processing, ceramics and refractory. The specific applications include: Casting Molds ;Resistance Heating Elements ;Channels Parts For Heat Exchangers ;Susceptors For Induction Furnace ;Furnace Linings ;Head Electrodes For Acheson Furnace ;Anodes For Metals Electrolysis ;Boats And Trays For Sintering ;Heat Shields And Covers For Pulling Of Monocrystalline silicon.
Medium-grain Specialty Graphite HTK1
项目
ltem |
单位
Unit |
保证值
Guarantee Value |
典型值
Typical Value |
保证值
Guarantee Value |
典型值
Typical Value |
保证值
Guarantee Value |
典型值
Typical Value |
最大粒度
Max Grain Size |
mm |
2 |
2 |
4 |
4 |
8 |
8 |
体积密度
Bulk Density |
g/cm3 |
≥1.58 |
1.60 |
≥1.57 |
1.58 |
≥1.56 |
1.58 |
电阻率
Specific Resistance |
μΩ·m |
≤11.5 |
10.5 |
≤11.5 |
10.5 |
≤12.5 |
11.5 |
抗折强度
Bending Strength |
MPa |
≥6.0 |
6.5 |
≥6.5 |
7.0 |
≥7.0 |
7.5 |
抗压强度
Compressive Strength |
MPa |
≥18.0 |
18.5 |
≥17.5 |
18.0 |
≥16.0 |
17.0 |
弹性模量
modulus of elasticity |
GPa |
≤9.3 |
7.5 |
≤9.3 |
7.5 |
≤9.3 |
7.0 |
热膨胀系数
C.T.E (100-600)℃ |
10-6/℃ |
≤2.5 |
2.4 |
≤2.5 |
2.4 |
≤2.5 |
2.4 |
灰分
Ash Content |
% |
≤0.3 |
0.09 |
≤0.3 |
0.09 |
≤0.3 |
0.09 |
Medium-grain Specialty Graphite HTK2
项目
ltem |
单位
Unit |
保证值
Guarantee Value |
典型值
Typical Value |
保证值
Guarantee Value |
典型值
Typical Value |
保证值
Guarantee Value |
典型值
Typical Value |
最大粒度
Max Grain Size |
mm |
2 |
2 |
4 |
4 |
8 |
8 |
体积密度
Bulk Density |
g/cm3 |
≥1.70 |
1.75 |
≥1.69 |
1.73 |
≥1.68 |
1.72 |
电阻率
Specific Resistance |
μΩ·m |
≤8.5 |
7.5 |
≤8.5 |
7.5 |
≤9.0 |
8.5 |
抗折强度
Bending Strength |
MPa |
≥9.0 |
10.0 |
≥9.0 |
10.0 |
≥10.0 |
12.5 |
抗压强度
Compressive Strength |
MPa |
≥30.0 |
31.0 |
≥29.0 |
30.0 |
≥30.0 |
31.0 |
弹性模量
modulus of elasticity |
GPa |
≤12.0 |
9.5 |
≤12.0 |
9.5 |
≤12.0 |
9.0 |
热膨胀系数
C.T.E (100-600)℃ |
10-6/℃ |
≤2.5 |
2.3 |
≤2.5 |
2.3 |
≤2.5 |
2.3 |
灰分
Ash Content |
% |
≤0.3 |
0.09 |
≤0.3 |
0.09 |
≤0.3 |
0.09 |
Fine-grain Specialty Graphite HTK3
项目
ltem |
单位
Unit |
保证值
Guarantee Value |
典型值
Typical Value |
最大粒度
Max Grain Size |
mm |
0.8 |
0.8 |
体积密度
Bulk Density |
g/cm3 |
≥1.70 |
1.73 |
电阻率
Specific Resistance |
μΩ·m |
≤8.5 |
7.5 |
抗折强度
Bending Strength |
MPa |
≥10.0 |
11.0 |
抗压强度
Compressive Strength |
MPa |
≥24.0 |
27.0 |
热导率
Thermal Conductivity |
W/(m·K) |
≥120 |
150 |
热膨胀系数
C.T.E (100-600)℃ |
10-6/℃ |
≤2.5 |
2.2 |
灰分
Ash Content |
% |
≤0.3 |
0.09 |
Fine-grain Specialty Graphite HTK4
项目
ltem |
单位
Unit |
保证值
Guarantee Value |
典型值
Typical Value |
最大粒度
Max Grain Size |
mm |
0.8 |
0.8 |
体积密度
Bulk Density |
g/cm3 |
≥1.73 |
1.76 |
电阻率
Specific Resistance |
μΩ·m |
≤8.0 |
7.0 |
抗折强度
Bending Strength |
MPa |
≥12.0 |
12.5 |
抗压强度
Compressive Strength |
MPa |
≥31.0 |
34.0 |
热导率
Thermal Conductivity |
W/(m·K) |
≥130 |
160 |
热膨胀系数
C.T.E (100-600)℃ |
10-6/℃ |
≤2.5 |
2.1 |
灰分
Ash Content |
% |
≤0.3 |
0.09 |
We also can supply as belowed specifications:Name | Type no | Density (g/cm3) | SpecificResistance (pQm) | Flexural Strength(Mpa) | Compressive Strength(Mpa) | Ash MAX(%) | ParticleMAX |
ELECTRODE Graphite | RP | ≥1.55-1.75 | 7.5-8.5 | ≥8.5 | ≥20 | ≤0.3 | ≤8-10mm |
Vibration Graphite | BGSK | ≥1.72 | 7-9 | ≥13.5 | ≥35 | ≤0.3 | ≤0.8mm |
BTSK | ≥1.62 | 7-9 | 9 | ≥22 | ≤0.3 | ≤2mm |
DieMold Graphite | BF2-3 | ≥1.8 | 10-13 | ≥40 | ≥60 | ≤0.1 | ≤0.043mm |
BF3-4 | ≥1.85 | 10-13 | ≥47 | ≥75 | ≤0.05 | ≤0.043mm |
Extruded Graphite | BFJ | ≥1.68 | 7.5-8.5 | ≥19 | ≥38 | ≤0.3 | ≤0.2mm |
Isostatic Graphite | BFD | ≥1.82 | 11-13 | ≥38 | ≥85 | ≤0.1 | 2um,6um,8um,15m.etc
|
